What is Vinylester Resin?
Vinylester resin is a high-performance resin system engineered for environments that demand exceptional chemical resistance. Structurally, it is a hybrid of epoxy and polyester resins, combining the mechanical toughness of epoxy with the speed and economy of polyester systems.
Its standout property lies in its tightly bonded polymer structure, which makes it particularly suitable for harsh chemical environments. The denser the polymer crosslinking, the more resistant it becomes, making vinylester ideal for areas exposed to aggressive acids, alkalis, and solvents.
Vinylester is commonly applied in chemical containment zones, such as bunds and tank surrounds, to act as a protective barrier between hazardous materials and the underlying concrete. By doing so, it helps prevent contamination of subsoils and groundwater, ensuring both safety and regulatory compliance.
High Chemical Resistance
Designed for harsh chemical environments, including acids and solvents
Tightly Bonded Polymers
Offers superior protection due to its close polymer crosslinking
Thermal Stability
Maintains integrity under high temperatures
Low Permeability
Minimises the risk of chemical leaching into the substrate
Fast Curing Time
Allows for quicker installation without compromising performance
Excellent Adhesion
Bonds well to concrete, ensuring a long-lasting finish
Technical Specifications:
- Resin Type: Vinylester
- Cure Time (Initial Set): 4–6 hours (temperature-dependent)
- Full Cure Time: 24 hours
- Chemical Resistance: Excellent (acids, alkalis, solvents)
- Temperature Resistance: Up to 180 °C (dry conditions)
- Bond Strength: > 20 MPa (to concrete substrate)
- Tensile Strength: Approx. 70 MPa
- Flexural Strength: Approx. 120 MPa
Industries & Applications
Vinylester resin is purpose-built for industrial settings where aggressive chemical exposure is routine.
Water Treatment Facilities
- Chemical Dosing Area Protection
- Protective Sealing of Concrete Floors
Petrochemical Refineries
- Spill Containment Bunds
- Pipework Trench Linings

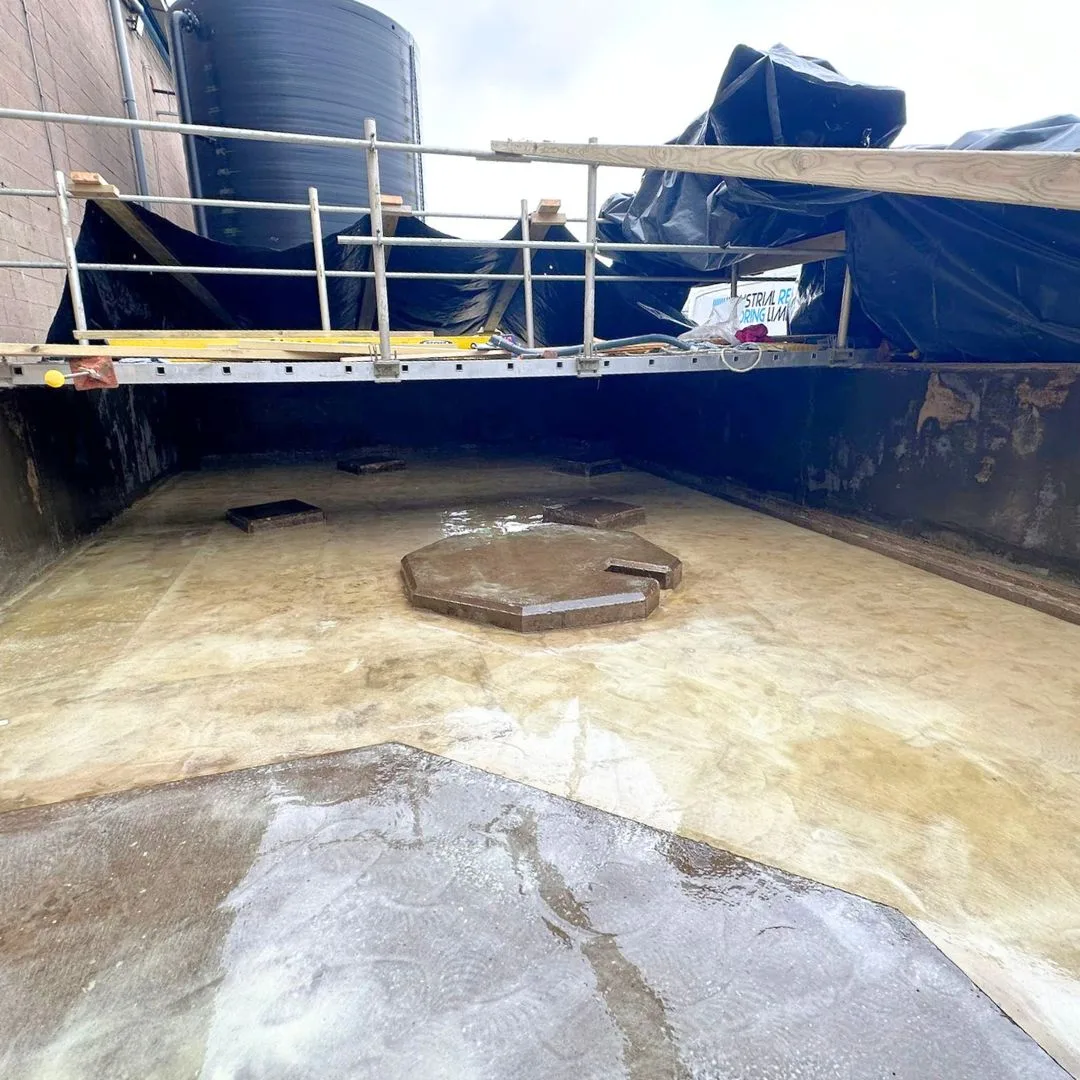

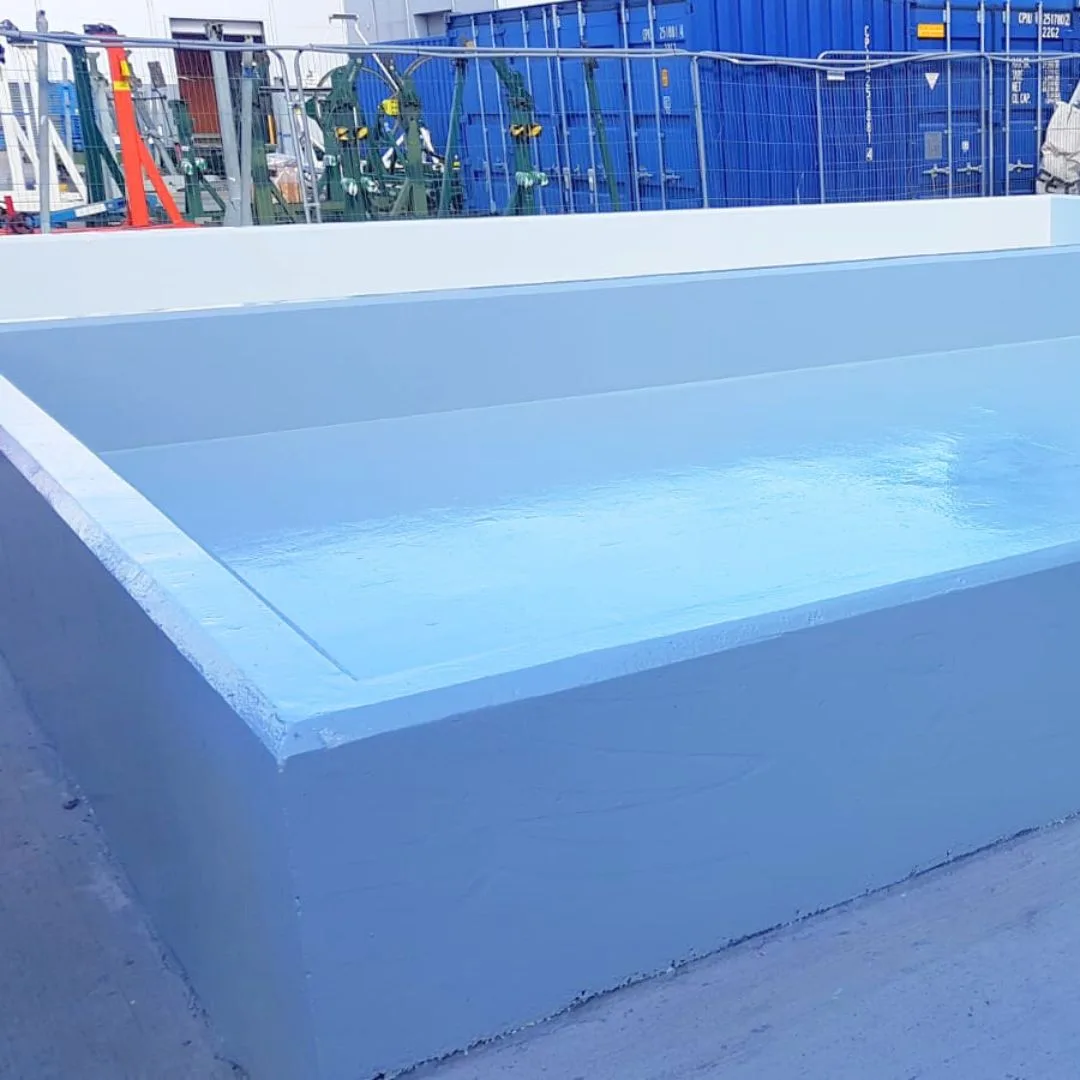

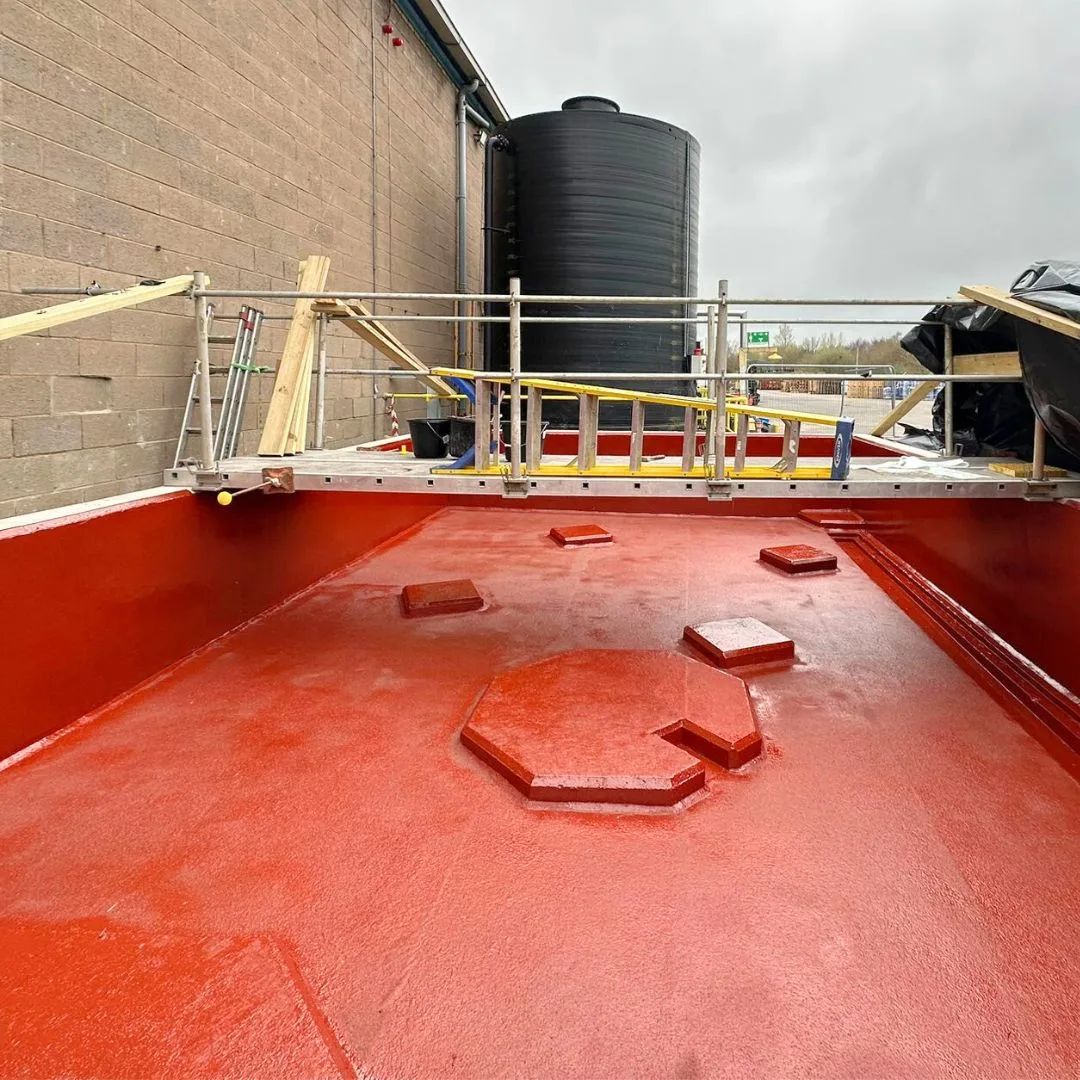

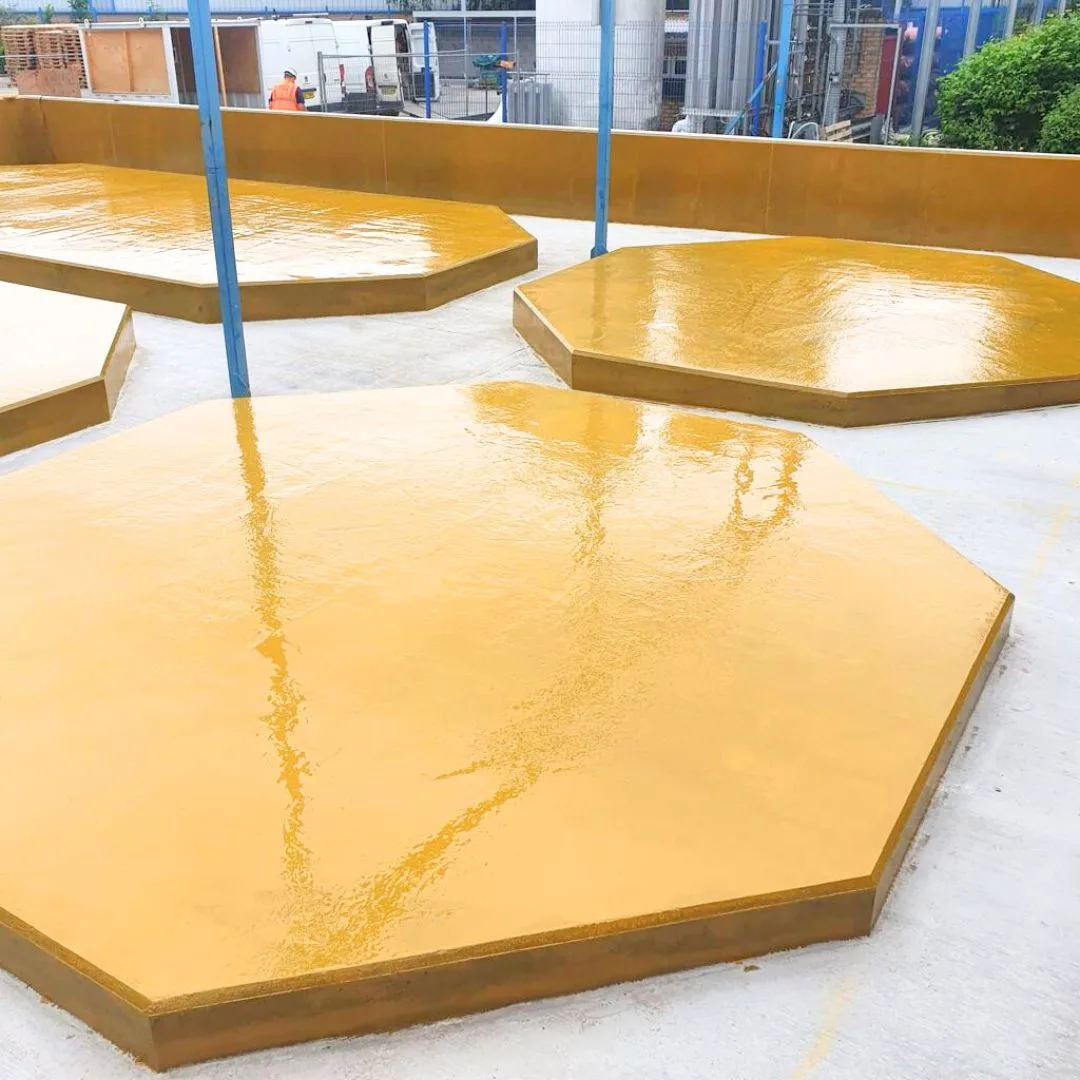

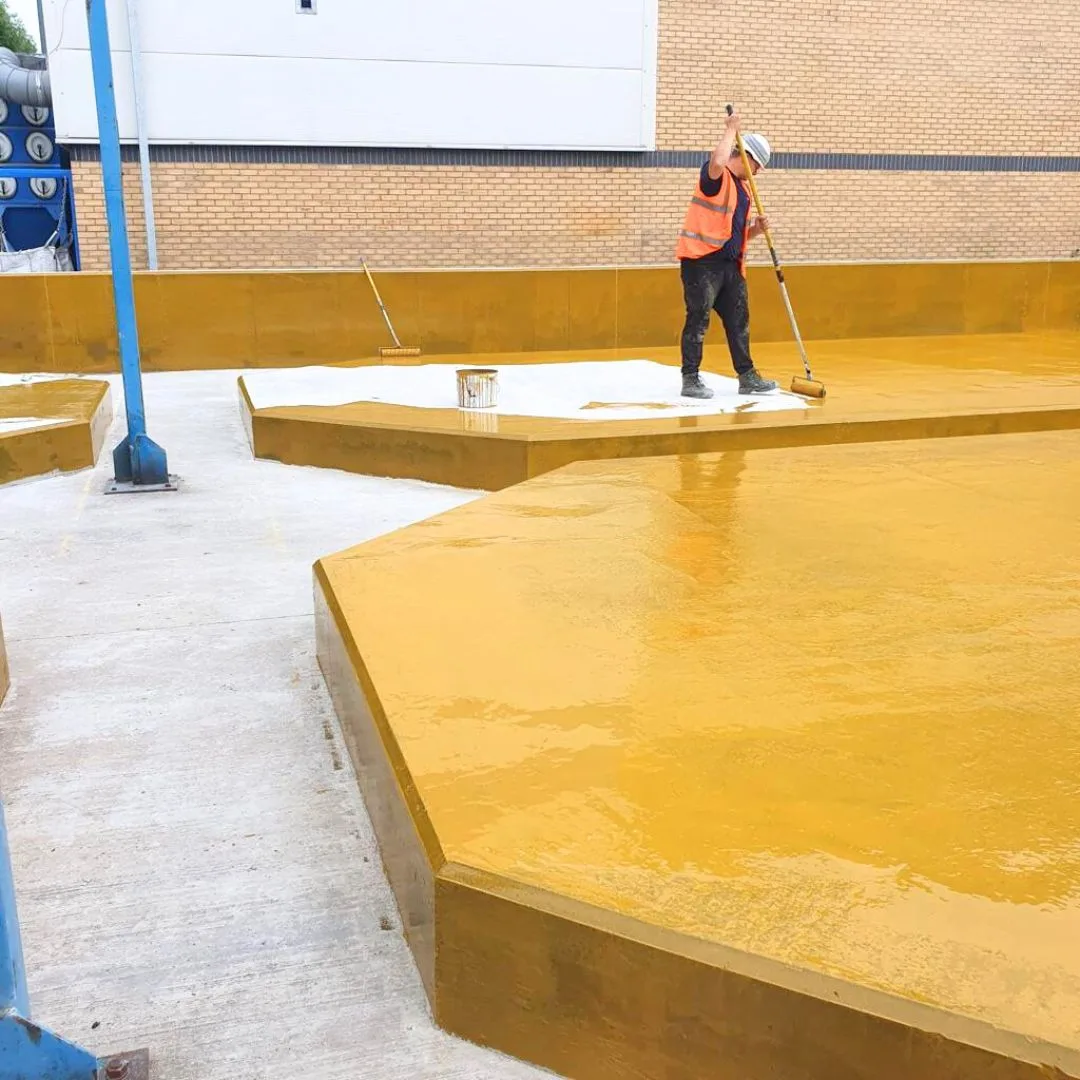

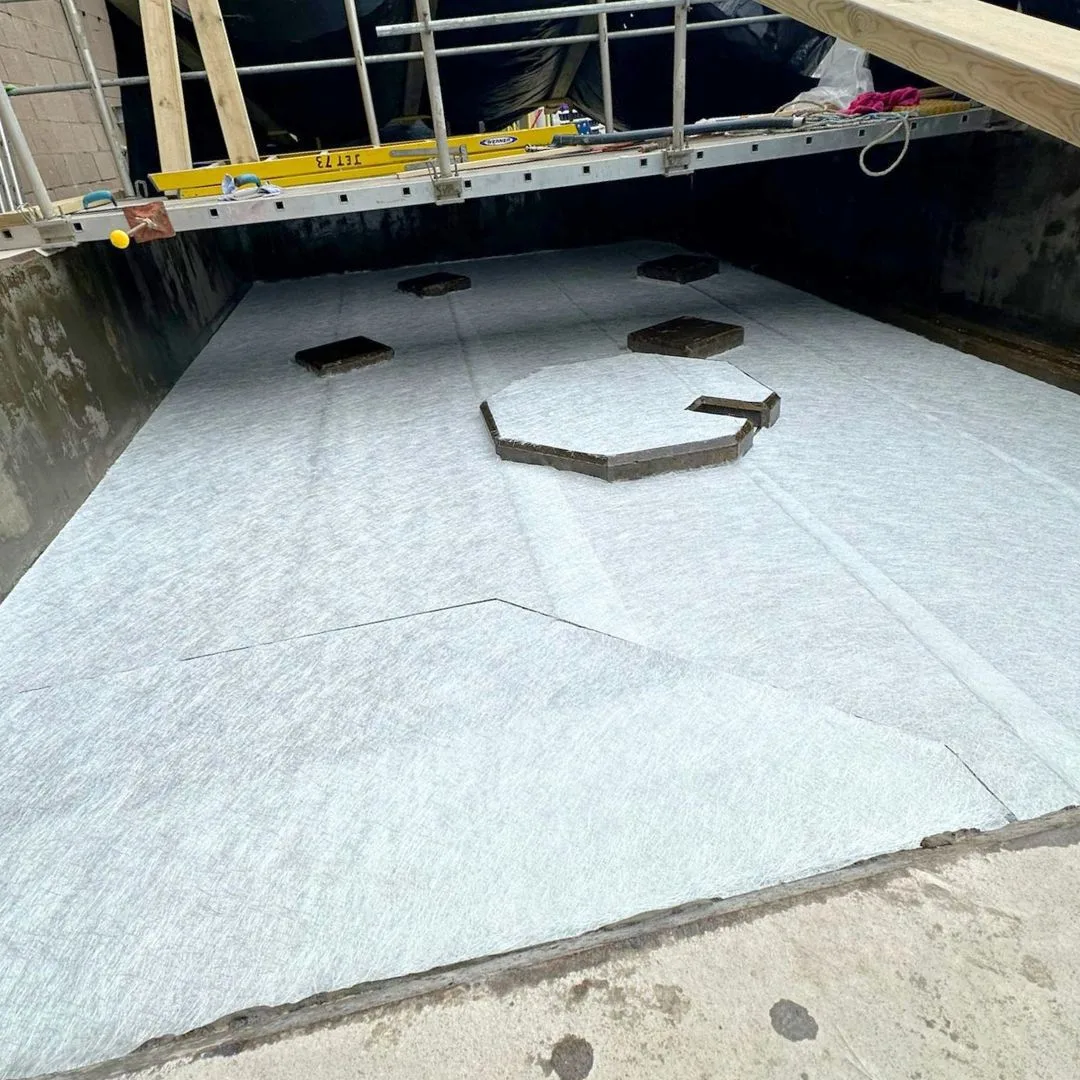

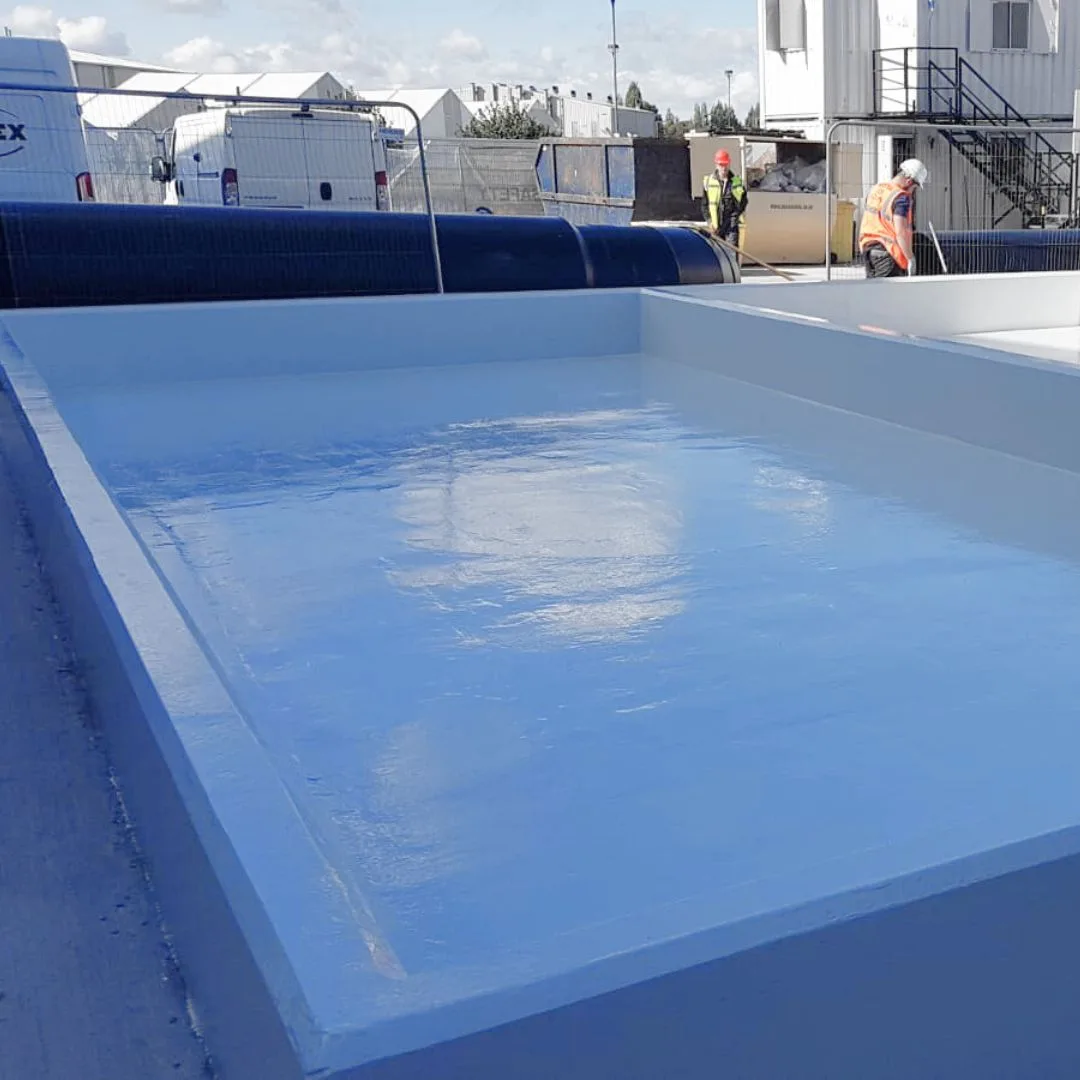

Vinylester Flooring Gallery
Check out our selection of photos showcasing our installations in various settings.
Let’s kickstart your project!
Request a free survey
Start with a Free Survey. We assess your needs and offer tailored recommendations, costs and proposed work.
Seamless installation
Our team of qualified specialists arrive to begin the proposed work.
Inspection & quality control
Our team of experts will complete a thorough check of the work undertaken and provide any maintenance information.
I have questions…
No, while vinylester and epoxy resins share similar properties, they are chemically distinct. Vinylester combines epoxy backbones with polyester-derived properties, giving it enhanced chemical resistance and flexibility. Epoxy is better for mechanical strength and adhesion, but generally offers less resistance to aggressive chemicals compared to vinylester.
Yes, vinylester resin is highly waterproof and has very low permeability. It is specifically designed to prevent the infiltration of liquids, making it suitable for areas prone to chemical spills or frequent washdowns.
